How to identify float glass by appearance quality

Views: 110     Author: Site Editor     Publish Time: 2023-04-28      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button

  1. High-quality float glass is generally colourless and transparent or light green.

  2. Indelible adhesives shouldn't be on the surface of float glass.

  3. Cracks or apparent defects are not allowed.

  4. The uniform thickness and the deviation limit of glass thickness should be between 0.2mm and 0.3mm.

  5. On the same piece of glass, the appearance defects of bubbles, pockmarks, sand grains and optical distortion points cannot be concentrated at the same time, and the minimum distance between each other should be at least more than 10 cm.

  6. Through light inspection, there shouldn't be tin, spots, impurities, traces. No bubbles the diameter of which is over 2 mm is allowed in an area of half a square meter, and the bubbles the diameter which is about 1 mm should be few and cannot be centrally distributed; when observed in a certain direction, there are no more than two optical distortion points. If there are ripples, objects within 4-5 meters should not be deformed when seeing from 30 degrees through the glass.


The difference between float Glass and ordinary Glass



Compared with ordinary glass, float glass is very different in the production process and glass quality. Float glass is made of silica sand,  calcite, soda ash, dolomite and other raw materials at high temperature, then flattened on liquid tin surface, cooled and hardened, separated from molten glass, and finally annealed and cut into the glass sheet. Compared with other glasses, float glass has a more smooth surface, better thickness uniformity, better transparency and excellent optical properties. It can be used to make mirrors, car glass, TV background walls, screens and civil buildings etc.


Company Introduction


Company Introduction

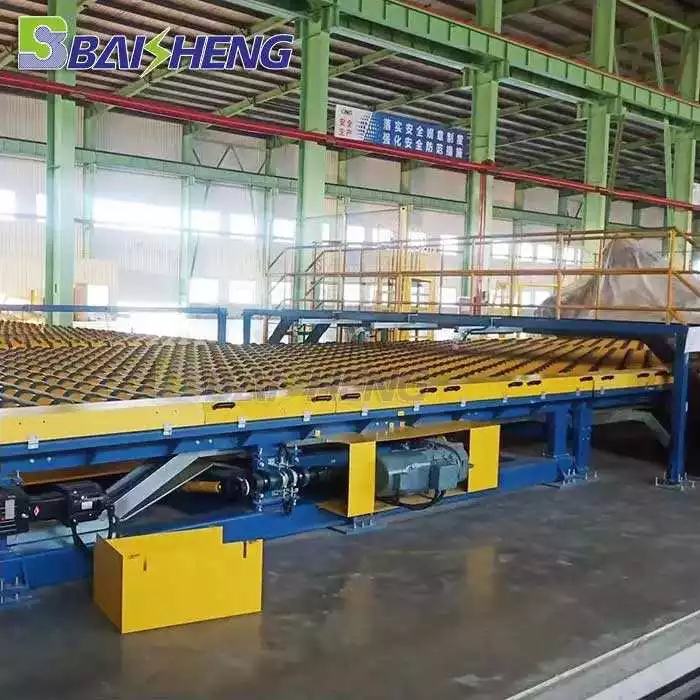

                           Float glass production line



Nanjing Baisheng Glass Technology Co., Ltd., based in Najing, providing  global glass technology equipment engineering system integration services. With a registered capital of 60 million CNY, the company has advanced technology and rich experience in the construction of glass factories, furnace repair, and equipment manufacturing of glass production lines. The company's revenue has increased by an average of 30% per year since its establishment in 2007. The company has a reasonable talent structure, with over 60 professional engineering and technical personnel, and has collaborated with industry experts, universities, and research institutes to develop new products and processes in the glass industry.  The company's esteemed clients include international top glass enterprises and important domestic enterprises, and it focuses on developing and maintaining key target customers among the "One Belt, One Road" countries. The company aims to be the most valuable service provider in the glass industry with a strong technical force and high-quality service.
