Customizable
One year warranty after project completion
By sea

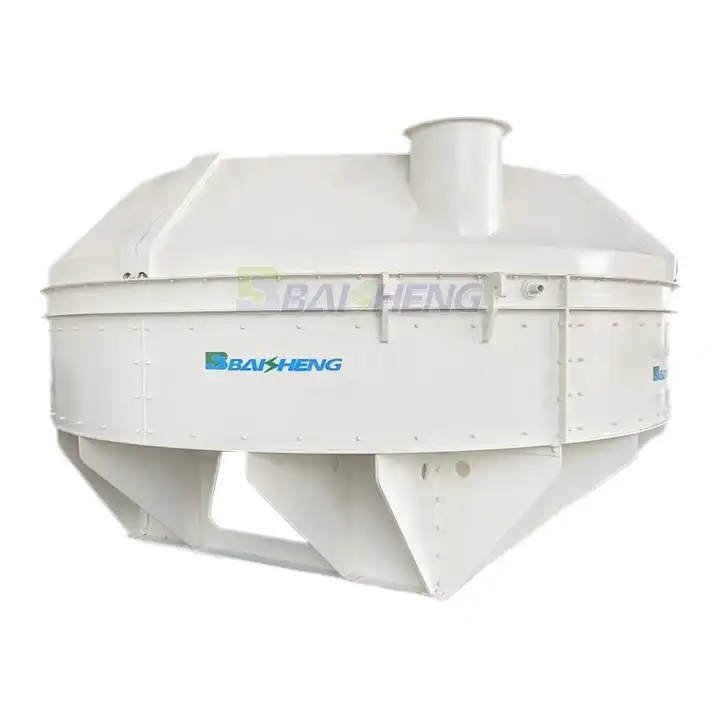

This equipment is mainly used for mixing glass batch materials in glass factories.The parameters of glass furnace auxiliary equipment are mainly customized according to the size of the glass furnace project, and the price is not fixed. Our sales manager will give you a quotation.
working principle
Start the turbine drive motor, and then add the ingredients to be mixed into the mixer. Due to the distribution of the vortex and the special angle of the blades arranged in the radial direction and the mixer chassis, the material close to the inner cylinder is rapidly and forcibly moved outwards continuously, while the material close to the outer cylinder is quickly and forcibly moved out. Continuously moving in the direction of the inner cylinder, so these materials are forced to continuously make tossing and shearing movements between the inner and outer cylinders, and the materials are also constantly turned up and down, so as to achieve the purpose of mixing materials quickly and effectively.
| Product Name | Mixing machine |
| Model | QH7500 |
| Capacity | 7500L |
| Mixing Cycle | 240s＜T＜360s |
| Uniformity | ≥97.5% |
| Rotate Speed | 19.12r/min |
| Add Water Type | Fixed quantity water meter |
| Main Motor Power | 220kw/380v |
| Gear Pump | 2.2kw*2 |
| Housing Material | Q235-A |
| Scaleboard Material | 16Mn |
| Drawknife Material | High chromium alloy |
| Safety Protection | Drive protective cover, access door safety switch, on-site emergency switch, etc |
| Operating Mode | Automatic |
| Main Structural Components | Housing, reducer, main motor, vortex slurry device, lubricating oil tank, water adding device, steam device, breathing apparatus, etc |
| Housing Weight | 9250kgs |
| Total Weight | 20000kgs |
| Size（L*W*H） | 5000*5000*1950mm |
Our company is a global glass technology equipment engineering system integration service provider. Provide "one-stop" system integration services for glass engineering R&D design, engineering construction, equipment manufacturing, commissioning and production operation. In terms of photovoltaic rolled glass, small and medium float glass, water glass and light industry energy-saving glass, all oxygen and electric fluxing glass technology, the company has its own patented technology.
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer, specializing in providing "one-stop" system integration services for R&D design, engineering construction, equipment manufacturing, commissioning and production operation of glass engineering.
Q: How long is your delivery time?
A: As we are an engineering manufacturer, we need to go to your place to inspect, design and build glass furnaces, which will take a long time. Specifically, our sales manager will communicate with you in detail.
Q: Do you arrange customers visiting your factory?
A: Welcome to visit at any time! But it's best to make an appointment with our sales manager, who needs to arrange everything for you to come to the factory.
Q: What is your terms of payment?
A: We support L/C,T/T payment. Payment terms: 30% in advance, 30% of the contract amount before delivery, 30% of the contract amount after cold acceptance, 5% of the contract amount after hot acceptance, and 5% of the contract amount during the warranty period.
Q: How can you guarantee quality?
A: Our glass kilns are engineering products, all of which are designed and built by our company sending professionals to you. When the engineering project is finished, a series of work such as commissioning will be carried out on site, and there will be training and technical support, after-sales service, etc. All products have a one-year warranty period. Please feel free to cooperate with us.
